Energy Audit Application for Rice-Wheat Cropping System

Rajesh U Modi^1*, Mudasir Ali¹, Raghuvirsinh P Parmar¹, Sharad Kumar Namdev²

¹Department of Farm Machinery and Power Engineering, College of Agricultural Engineering & Technology, Punjab Agricultural University, Ludhiana, Punjab, India -141004.

²Department of Farm Machinery and Power Engineering, Zila Parishad Krishi Mahavidhalaya Banda, Bundelkhand University Jhansi, Uttar Pradesh, India – 210 001.

Corresponding Author E-mail: rmodi0701@gmail.com

DOI : http://dx.doi.org/10.13005/ojcst11.04.06

ABSTRACT:

This computer application deals with energy auditing for rice-wheat cropping system. Computing different input parameters for the crop production system in terms of energy requirement (MJ/ha) can be done by using this computer application. The developed application was found to be a simple, easy and user-friendly with appropriate output units. It works efficiently and gives the desired output in terms of energy consumption (MJ/ha). The advantage of this application is to decide the inputs on the basis of energy consumption before performing actual cultivation practice using the last season data. Moreover, using this package energy budget difference and comparison of subsequent production seasons can be achieved. The computer application was developed using Visual Basic, which allows the user to calculate total energy use efficiency, specific energy and different energy ratios in a particular cropping system.

KEYWORDS: Computer program; Energy analysis; Energy requirement; Rice-wheat; Visual basic

Copy the following to cite this article: Modi R. U, Ali M, Parmar R. P, Namdev S. K. Energy Audit Application for Rice-Wheat Cropping System. Orient.J. Comp. Sci. and Technol;11(4)

Copy the following to cite this URL: Modi R. U, Ali M, Parmar R. P, Namdev S. K. Energy Audit Application for Rice-Wheat Cropping System. Orient.J. Comp. Sci. and Technol;11(4) . Available from: http://www.computerscijournal.org/?p=9260

Introduction

Energy is recognized as being the vital and valuable input source in a crop production system. Successful crop production consumes energy directly or indirectly from combination of various sources like seed, farmyard manure, fertilizer, plant protection, irrigation and machinery. Agriculture production is both energy dependent and demanding process. Energy is consumed as well as supplied back by agriculture sector in the form of bioenergy.¹ Efficient and precise energy input is critical part for economical and sustainable crop production. Generally, energy required in agriculture has been classified as direct and indirect. Moreover, direct energy releases energy directly whereas indirect energy releases energy through a conversion process. Direct energy provides energy to accomplish various farm operations such as tillage, sowing, weeding, irrigation, crop protection, threshing and harvesting. Whereas, indirect energy provides energy includes the energy required for packaging and transportation of the seed, fertilizer, pesticides and machinery. However, energy is also classified as renewable or non-renewable energy sources. Energy sources like human, animal, farmyard manure and seed are considered as renewable energy sources whereas fossil fuels, electricity, farm machinery including tractor, chemicals and fertilizers are falls under non-renewable energy sources. The energy analysis enhances energy productivity by minimizing the energy inputs effectively in a crop production system. The parameters such as specific energy and energy ratio define the efficient work of the system. An estimation of energy input in agriculture sector is more challenging as the production is being increasing day by day through the use of various commercial technologies. Therefore, increased agricultural production requires greater energy inputs in a developed and efficient manner. However, the energy use pattern can be different for various farm operations which would lead to a change in energy requirement for a particular operation. Although, for crop production systems the energy requirement in Indian agriculture may increase further.²

Rice-wheat cropping system is reported as the major cropping system in the south Asian subcontinent. It covers about 13.5 million hectares in the Indo-Gangetic Plains, of which India has 10 million hectares, Pakistan has 2.2 million hectares, Bangladesh holds 0.8 million hectares and Nepal has 0.5 million hectares. These countries accounted more than 25-33% of total rice and wheat production. In this system, rice covered about 33% and wheat 42% of the total area. It was found to be dominant in the northern part of India with devoting almost 75% of total country’s food grain production [3]. As an individual view, rice and wheat are the major crops in the world grown over 163 million hectares and 220 million hectares harvest area, respectively. The total production in the world is 741 million tons and 729 million tons of rice and wheat, respectively. Out of this, India ranked second in both the crop production systems. Rice comprises 43.9 million hectares of harvest area whereas wheat comprises 30.5 million hectares with the production of 104.3 and 95.9 million tons of paddy and wheat, respectively [4]. However, Punjab has the highest productivity in rice with the production of 18.8 million tons and even more on the cultivated area of 3.04 million hectares [5]. Achieving this needs more energy consumption where rice-wheat cropping system gives the highest net return energy (102862 MJ/ha) [6]. The field experiment on energy and economic analysis conducted in wheat production in Chhattisgarh, India and concluded that Zero-tillage treatment is one of the energy efficient and economical conservation tillage machinery [7]. However, rice-wheat production demand will increase as the country progresses, as so energy. Therefore, it is important to calculate the energy requirement before the actual steps being taken towards execution of unit operations in crop production. Rice crop consumes more than 90% of the total energy input only from commercial sources and remaining from non-commercial sources. However, this energy analysis is tedious method if done manually. A program was developed in Visual Basic to determine the energy requirement for sugarcane production [8]. However, this computer program was unable to calculate energy consumption in rice-wheat cropping system. In the view of above, a user-friendly computer application was developed to assist in computing energy analysis using Visual Basic 2015 as a programing language. The main objective of this study was to provide easy and efficient energy input-output analysis in rice-wheat crop production system.

Materials and Methods

Method of calculation and theoretical considerations

The data regarding energy equivalents for the study were taken from the various literature cited as shown in Table 1. Furthermore, energy was calculated on the basis of energy equivalents as referred. Production factors includes human (man-h), tractor (h), machinery (h), diesel consumption (liter), farmyard manure (kg), chemical (kg), fertilizer (kg), seed (kg), electricity (kWh), grain (rice or wheat) yield (kg) and straw yield (kg). In order to obtain the parameters such as energy ratios and specific energy (MJ/kg) the energy input and energy output (MJ/ha) as well as the yield (kg/ha) were used.

Table 1: Energy equivalents of inputs

Sl. No.	Input	Unit	Abbreviation	Energy equivalent (MJ/Unit)	Reference
	Human	man-h	Eqh	1.96	[9]
	Animal (large)	pair-h	Eqa	14.05	[9]
	Diesel	l	Eqd	56.31	[10]
	Electricity	kWh	Eqe	11.93	[10]
	Seed	kg	Eqg	14.7	[9]
	Farmyard manure	kg	Eqf	0.3	[10]
	Fertilizer	kg	Eqc2	60.60	[10]
	Chemical	kg	Eqc1	199	[11]
	Tractor	kg	Eqt	68.4	[10]
	Machinery	kg	Eqm	62.7	[9]
	Straw	kg	Eqs	12.5	[12]



In the programming following formulas were used for further calculation

E_H = E_qh × H_h

E_A =E_qa ×A_h

E_T = (E_qt× W_t × W_ht) / (L_t × W_hyt)

E_M = (E_qm× W_m× W_hm) / (L_m × W_hym)

E_D = E_qd × F_c

E_{F =} E_qf ×F_q

E_{C1 =} E_qc1 ×C_q1

E_C2= E_qc2 ×C_q2

E_s= E_qg ×S

E_E= E_qe ×E_h

E_op= Y_g × E_qg

E_ob = Y_s × E_qs

E_total = E_H+ E_A+ E_{D +} E_{E +}E_{s +} E_{F +} E_C1+ E_C2+ E_{T +}E_M

Direct energy (MJ/ha) = E_{H +} E_{D +} E_E

Indirect energy (MJ/ha) = E_{s +} E_{F +} E_C1+ E_C2+ E_{T +} E_M

Renewable (MJ/ha) = E_{H +} E_{s +} E_F

Non-renewable (MJ/ha) = E_{D +} E_{E +}E_C1+ E_C2+ E_{T +} E_M

Commercial (MJ/ha) = E_{D +} E_{E +}E_C1+ E_C2+ E_{T +} E_{M +} E_s

Non-commercial (MJ/ha) = E_{H +} E_F

Energy ratio for produce = E_op / E_i

Energy ratio for by-product = E_ob / E_i

Specific energy (MJ/kg) = Y_g/ E_total

Where,

A_h = Animal hour (large size pair)

C_q1= Chemical required

C_q2= fertilizer required

E_A = Energy from animal pair (large size)

E_C1 = Energy from chemicals

E_C2= Energy from chemical fertilizers

E_D= Energy from diesel

E_E= Energy from electricity

E_F = Energy from farmyard manure

E_h = Electricity hours

E_H = Energy from human or labour

E_i = Input energy

E_M = Energy from machinery

E_ob = Output energy for by-product (MJ/ha)

E_op = Output energy for produce (MJ/ha)

E_S= Energy from seed

E_T =Energy from tractor

E_total = Total energy (MJ/ha)

F_c = Diesel fuel used

F_q = Quantity of farmyard manure used

H_h = Human hours

L_m = Life of machine

L_t = Life of tractor

S = Quantity of seed utilized

W_hm = Machine working hours

W_ht= Tractor working hours

W_hym = Machine working hours per year

W_hyt = Tractor working hours per year

W_m = Weight of machine

W_t = Weight of tractor

Y_g= Grain yield

Y_s= Straw yield

Development of program

The computer program for energy audit (calculation) was developed for energy requirement in rice and wheat crop production systems. It was developed using Visual Studio 14.0 along with several sequential tabs to complete the process in order to obtain required energy input-output of the system. The tabs were precise intuitive and user friendly to enter the required values. This program starts with initializing welcome screen (Fig. 1) and further instructions through navigation options while selecting a crop either rice or wheat. The program was separated in two modules i.e. input and output which are interdependent to each other. The first module comprises the input parameters needed for energy analysis such as human, animal, diesel, electricity, seed, farmyard manure, fertilizer, chemical, tractor, machinery, grain yield, straw yield etc. The total input energy can be calculated by providing these inputs in respective textboxes. However, navigation options are provided on the right side of the window itself, including ‘Energy equivalents’ button (Fig 2) to get all desired equivalents and finding the results by clicking the ‘Calculate’ button. For the calculation purpose, theoretical considerations were taken as discussed above. The Fig. 3 shows the flow chart of the developed program using Visual Basic™. The different sources were direct, indirect, renewable, non-renewable, commercial and non-commercial energy sources. The efficiency of a system was found using output energy (MJ/ha), energy ratios and specific energy (MJ/kg). These calculation were obtained by clicking the ‘Calculate’ button as provided in a navigation option at the energy output module.

Figure 1: Initializing screen of a developed program in visual basic Click here to View table

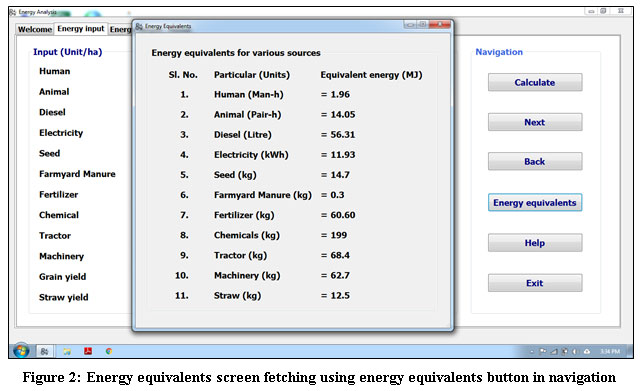

Figure 2: Energy equivalents screen fetching using energy equivalents button in navigation Click here to View table

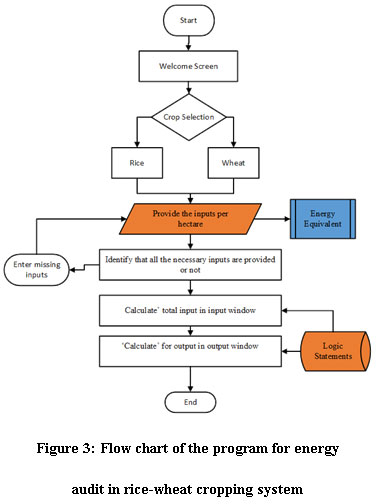

Figure 3: Flow chart of the energy audit application for rice-wheat cropping system Click here to View table



Results and Discussion

Application of the developed program

Rice-wheat cropping system under large farm category (excluding animal power) has been taken as an example to validate the developed energy audit software package. However, the motive behind the given input data as parameters discussed were taken for indicative purpose only and output obtained on the basis of different energy sources involved. The output screens and tables show that the developed program generated output values in agreement with the calculated values.

Energy in rice cultivation

As far as rice cultivation was considered in Indo-Gangetic Plains, puddling and transplanting operation are accomplished mostly with rotavator and manually, respectively. The programing windows for input parameters and different energy ratios with specific energy are shown Fig. 4 and Fig. 5, respectively. Table 2 depicts the different inputs involved in raising rice crop and its subsequent output as displayed by the program. However, source wise energy consumption with percentage share for rice is presented in Fig. 6. It is clear from these figures, electricity (34%) was a highest input followed by fertilizer (33%), diesel (19%), farmyard manure (4%), human (4%), machinery (including tractor) (3%), seed (1%) and chemical (2%). Total input energy involved for rice was 23773.84 MJ/ha as calculated by the software. The source wise energy (MJ/ha) consumption for rice is shown in Fig.10. The component of commercial energy was found to be highest (93%) and rest was non-commercial energy. The energy from direct, indirect, renewable and non-renewable sources was 57, 43, 9 and 91%, respectively. From the computer application (Fig. 5) energy ratio for produce and by product it was 3.69 and 2.61, respectively. The specific energy analyzed by the computer application was 3.98 MJ/kg for rice production system.

Table 2: Amount of different input values per hectare and outputs given by program for rice

Particulars	Input value (unit/ha)	Energy output (MJ/ha)
Human	427(h)	836.92
Animal	00 (h)	00
Diesel	81 (l)	4561.11
Electricity	683 (kWh)	8148.19
Seed	22 (kg)	323.40
Farmyard manure	3056 (kg)	916.80
Fertilizer	131 (kg)	7938.60
Chemicals	2.4 (kg)	477.60
Tractor	11.2 (h)	153.22
Machinery	40 (h)	418
Grain yield	5970 (kg/ha)	87759
Straw yield	4963 (kg/ha)	62037.5

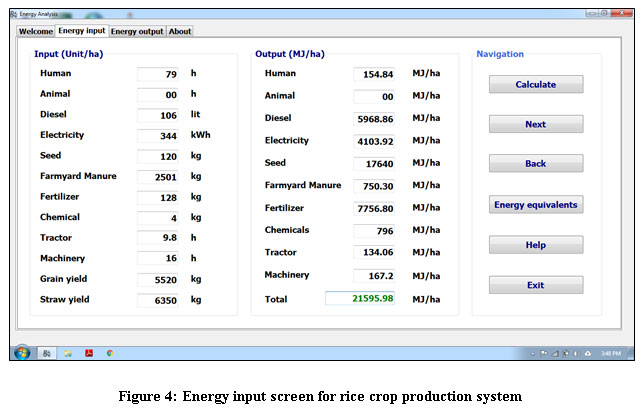

Figure 4: Energy input screen for rice crop production system Click here to View table

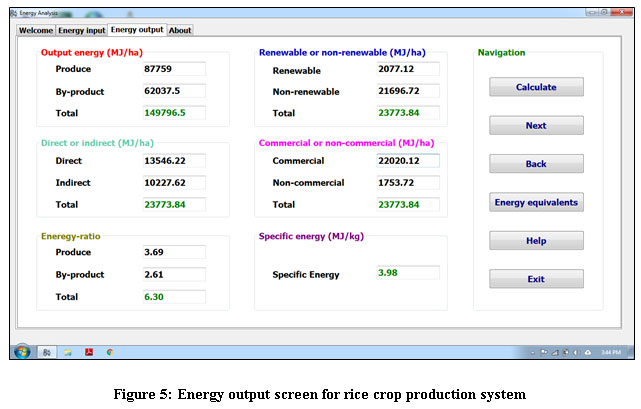

Figure 5: Energy output screen for rice crop production system Click here to View table

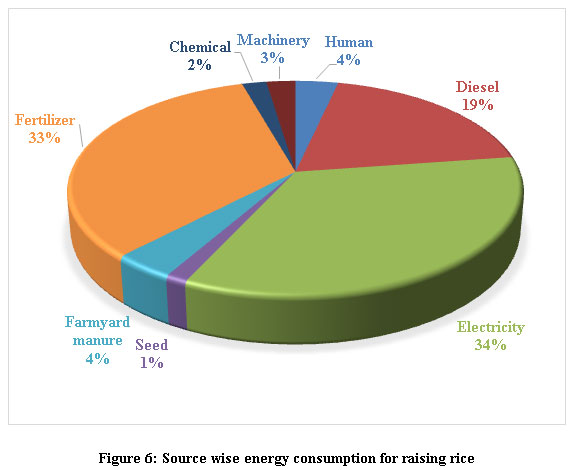

Figure 6: Source wise energy consumption for raising rice Click here to View table



Energy in wheat cultivation

While validating the computer application the wheat production systems was considered for Indo-Gangetic Plains where rotavator is used as a seed bed preparation machine. Table 4 depicts the different output energy values as calculated by computer application against the respective input data. The percentage source wise energy share for raising wheat is presented in Fig. 9. It is clearly shown that fertilizer (36%) was a major source of energy followed by diesel (28%) electricity (19%) and seed (8%). The remaining was chemical (4%), farmyard manure (3%), machinery (including tractor) (1%) and human (1%). Fig.10 shows percentage share by commercial was highest (96%) and rest had non-commercial source of energy. The energy from different modes such as direct, indirect, renewable and non-renewable was 47, 53, 12 and 88%, respectively. Fig. 8 showed the energy ratio for produce and by product as 3.76 and 3.66, respectively. However, specific energy was found to be 3.91 MJ/kg using the developed software.

Table 3: Amount of different input values per hectare and outputs given by program for wheat

Particulars	Input value (unit/ha)	Energy output (MJ/ha)
Human	79 (h)	154.84
Animal	0 (h)	0
Diesel	106 (l)	5968.86
Electricity	344 (kWh)	4103.92
Seed	120 (kg)	1764
Farmyard manure	2501 (kg)	750.3
Fertilizer	128 (kg)	7756.8
Chemicals	4 (kg)	796
Tractor	9.8 (h)	134.06
Machinery	16 (h)	167.2
Grain yield	5520 (kg/ha)	81144
Straw yield	6350 (kg/ha)	79375

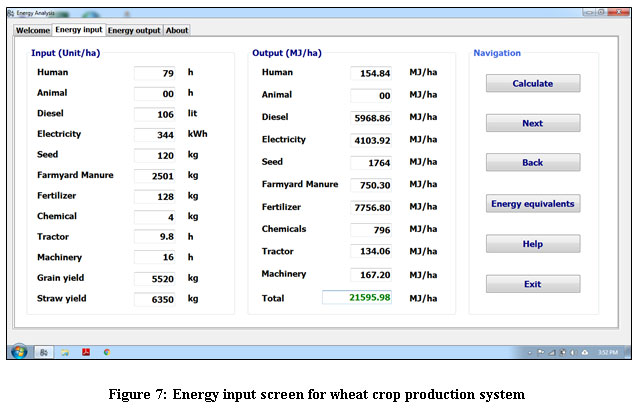

Figure 7: Energy input screen for wheat crop production system Click here to View table

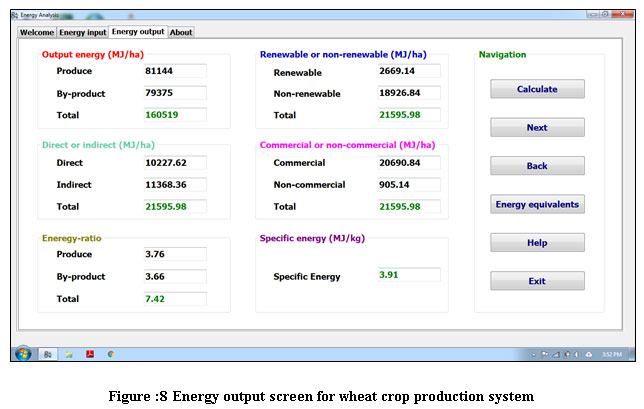

Figure 8: Energy output screen for wheat crop production system Click here to View table

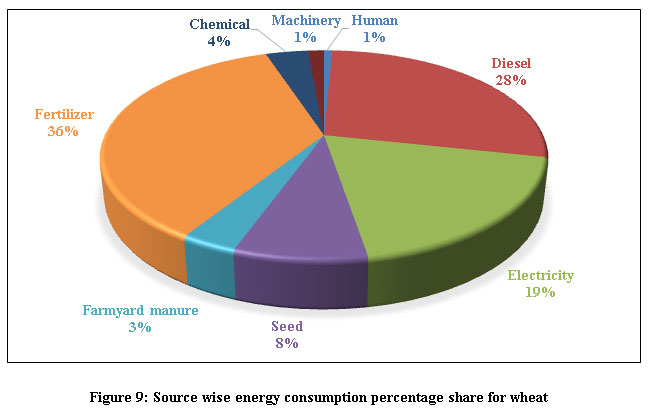

Figure 9: Source wise energy consumption percentage share for wheat Click here to View table

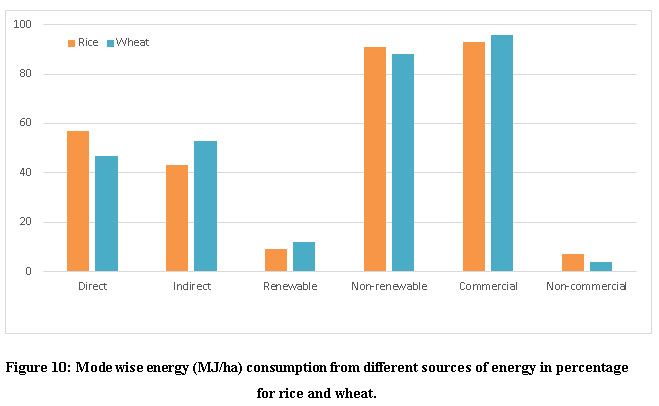

Figure 10: Mode wise energy (MJ/ha) consumption from different sources of energy in percentage for rice and wheat. Click here to View table



Therefore, it was concluded that developed software application performed well to achieve desired energy output ratios in accordance with energy equivalents on energy use pattern and consumption in different cropping systems.

Conclusion

From the study, following conclusions can be drawn Using the developed software program the energy requirement for rice-wheat cropping system was efficiently analyzed and required data was obtained on the basis of different energy sources.

The developed package was used to analyze the data regarding system efficiency with respect to output energy (MJ/ha), energy ratio and specific energy (MJ/kg).

The validation of the program with a case study shows its usefulness in predicting the energy requirement in the rice-wheat cropping system and it would help in deciding the appropriate energy source utillization.

Acknowledgements

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
