Neha Bhatia1, Himani2 and Chander Kant3

1,3Department of Computer science and Application, Kurukshetra University, Kurukshetra, India

2Doon Valley Institute of Engineering and Technology, Karnal, India





DOI : http://dx.doi.org/10.13005/ojcst/10.02.27

ABSTRACT:

Biometric authentication using fingerprint is one of the unique and reliable method of verification processes. Biometric System suffers a significant loss of performance when the sensor is changed during enrollment and authentication process. In this paper fingerprint sensor interoperability problem is addressed using Gabor filter and classifying images into good and poor quality. Gabor filters play an important role in many application areas for the enhancement of various types of fingerprint images. Gabor filters can remove noise, preserve the real ridges and valley structures, and it is used for fingerprint image enhancement. Experimental results on the FVC2004 databases show improvements of this approach.

KEYWORDS:

Biometrics; fingerprint Sensor; Sensor Interoperability; Gabor filter

Download this article as:

Copy the following to cite this article:

Bhatia N, Himani, Kant C. A Novel Approach to Address Sensor Interoperability Using Gabor Filter. Orient.J. Comp. Sci. and Technol;10(2)


Copy the following to cite this URL:

Bhatia N, Himani, Kant C. A Novel Approach to Address Sensor Interoperability Using Gabor Filter. Orient. J. Comp. Sci. and Technol;10(2). Available from: http://www.computerscijournal.org/?p=5724


Introduction

Biometric means identity verification of persons according to their physical or behavioral characteristics. Many physical body parts and personal features have been used for biometric systems: fingers, hands, irises, faces, ears, voices, gaits, odors, feet, signatures, and DNA [1, 2]. A biometric system contains mainly a sensor module, a feature extraction module and a pattern matching module. A Sensor module acquires the raw biometric data of a person. Feature extraction module improves the quality of the captured image. Database module stores the biometric template information of enrolled Persons. Pattern matching module compares the present input with the stored template, which in-turn generates match score [1].

Fingerprint-based identification is one of the most important biometric technologies. Humans have used fingerprints for personal identification and the validity of fingerprint identification has been well established. Segmentation is an important pre-processing step in fingerprint recognition system. The segmentation is partitioning the fingerprint image into multiple segments. Gabor functions play an important role in biometric recognition. The most prominent two steps are [3]:

Foreground Segmentation

The Gabor response is only computed in the foreground and, hence, foreground segmentation is required. Foreground region corresponds to the area containing ridges and valleys.

Pixel-based Gabor response analysis

Thresholds are defined for the Gabor responses to associate a quality with each block. Similarly, thresholds are defined to classify the pixel into good and poor quality depending on the neighboring region [4, 5].

They are employed for many physical or behavioral traits including iris, face, speech, gait, handwriting, palm print and fingerprint recognition. Fingerprint recognition Gabor filterbank are used for the segmentation [6] and improve the quality of databases and evaluate the performances of fingerprint sensors and classification and fingerprint matching based on Gabor features. The Gabor filter is used for fingerprint image enhancement [7].

Gabor-based Quality Classification

The Gabor-based quality classification aids in classifying images into good and poor quality images [8]:

Good image

Clear ridges/valley contrast, easily-detected ridges, easily segmented.

Poor image

The poor quality images are also classified into dry (broken ridges, tiny parts of ridges can be separated) and smudged (not well separated ridges) on basis of the nature of the prints.

Fingerprint Sensors

Fingerprint sensors come in various shapes and sizes, but generally into two categories [9]:

Touch sensor: The user hold the finger on the sensor surface

Swipe sensor:  The user slides a finger vertically over the sensor surface.

There is the various acquisition technologies used in fingerprint sensors: optical, capacitive, thermal, and ultrasonic [10, 11].

Optical sensor

It capturing the digital image formed by the reflection of light from the points where ridges touches the sensors touch surface. Optical finger impression followers contain of a light sensor, touch surface and a capture device which can be a Charge Coupled Device.

Capacitive Sensor

Capacitive sensor is the solid state sensor.Fingerprint sensors consist of an array of capacitive plates on a silicon chip. One plate of capacitor is formed by the finger; other plate holds a tiny area of metallization on the chip.

Ultrasonic Sensor

It uses high frequency sound waves to monitor the finger surface. . Ultrasonic method of acquiring fingerprint is based on sending ultrasonic signals towards the finger and finds the echo.

Thermal sensor

Fingerprint sensors are made from the silicon die tiled by pixels of pyro-electric material that is sensitive to detect temperature differences. This sensor scans the surface of the finger, measuring the heat transferred from sensor to fingerprint.

Figure 1.Fingerprint Sensors

Figure 1: Fingerprint Sensors



Click here to View figure



Sensor Interoperability

Sensor interoperability is the ability of a biometric framework to adapt to the raw data obtained from a variety of sensors. Practically biometric frameworks would intended with look at information originated starting with the same sensor, but fail to give a good performance when the acquisition device is changed between the enrolment and the authentication phase [12]. Fingerprint sensor interoperability is the process of matching fingerprints collected from different sensors.

Related Work

Lugini et al. statistically analyzed how match scores change across different optical devices [14]. Results of the Kendall’s rank correspondence test pointed out that there is a significant difference between sensor pairs and that those change will not symmetric when inverting those two devices.

Marasco et al. proposed a learning-based approach to improve cross-device performance [15]. They extracted quality and intensity-based characteristics of fingerprint images acquired using four different commercial optical de-vices and scanned ink rolled prints. The defined set of characteristics was concatenated with the match score into a feature vector used for training a pattern classifier. Later, they investigated the impact of age and gender across different optical devices and matching algorithms [16].

Satish Kumar Chavan, Parth Mundada, Devendra Pal discussed fingerprint authentication using Gabor filter which is used to extract features of fingerprint images [17]. FVC 2000 and DBIT fingerprint databases are used to evaluate the algorithm and it achieves the average efficiency of 82.95 %   and 89.68% respectively.

LuYang,GongpingYang,LizhenZhou,Yilong Yin proposed a super pixel based finger vein region of interest (ROI) extraction with sensor interoperability in biometric systems [19]. Finger boundaries were firstly determined by tracking super pixels. Then the middle points of detected finger boundaries were used to adjust the finger directions. Finally, internal tangents of finger boundaries were used to localize ROI. It was found that this method extracts ROI accurately from the images acquired using multiple sensors.

Proposed Framework

A fingerprint sensor is to obtain a good quality image of the ridge pattern. The quality of a fingerprint image depends on sensor characteristics and the condition of the finger surface (i.e. good, dry). Sensing mechanism of each device is different and images with different sizes, resolution, feature distribution, gray level are produced.

Inthis work, a Novel approach to address sensor interoperability  using Gabor filter is presented. This approach avoids the requirement to change the model when the sensing devices changes. The approach follows procedures that enhances segmentation process of quality images and apply on Gabor filter. Gabor filter is used for fingerprint image enhancement. The fingerprint image enhancement is to improving the clarity of the ridge and valley structure.

Figure 2: Architecture of proposed scheme

Figure 2: Architecture of proposed scheme


Click here to View figure



Database

The database used is an FVC2004 database. The analysis for this study was conducted using fingerprints collected from three different fingerprint sensors. The three fingerprint sensors are V300 Crossmatch, Digital Persona U.are.U4000, and Atmel Finger Chip FCD4B14CB. The V300 Crossmatch and Digital Persona U.are.U4000 sensors are optical sensors and Finger Chip FCD4B14CB is a thermal sensor. Table 1 shows the database, sensors and specifications for the three fingerprint sensors:

Table 1: FVC 2004 Fingerprint Database

Database

Sensor Type

Sensor Name

Image Size

Resolution

DB1

Optical

V300 Crossmatch

640×480

(307K Pixels)

500dpi

DB2

Optical

Digital Persona

U.are.U4000

328×364

(119K pixels)

500dpi

DB3

Thermal

Atmel

FCD4B14CB

300×480

(144K pixels)

512dpi



Results

In this proposed framework there are 2 fingerprint images of different optical sensors one is V300 Crossmatch and other is of Digital Persona U.are.U4000. This approach follows a procedure that enhances and segments the quality image then applies on Gabor filter.

A. Gray-Scale

Figure 3.Original fingerprint image taken from DB1

Figure 3: Original fingerprint image taken from DB1



Click here to View figure



Figure 4: Original fingerprint image taken from DB2

Figure 4: Original fingerprint image taken from DB2



Click here to View figure



Segmentation

Fingerprint segmentation technique can improve the accuracy in collecting clear fingerprint area and mark noise areas. The segmented images of good and poor quality fingerprint are illustrated in figure below:

Figure 5.Original fingerprint of good quality taken from DB1 and Segmented image of good quality

Figure 5: Original fingerprint of good quality taken from DB1 and Segmented image of good quality



Click here to View figure



Figure 6.Original fingerprint of Poor quality taken from DB1 and Segmented image of poor quality

Figure 6: Original fingerprint of Poor quality taken from DB1 and Segmented image of poor quality



Click here to View figure

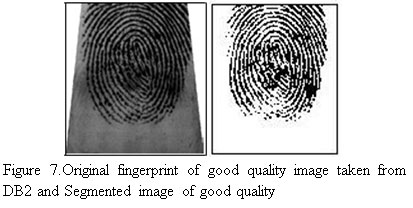

Figure 7.Original fingerprint of good quality image taken from DB2 and Segmented image of good quality

Figure 7: Original fingerprint of good quality image taken from DB2 and Segmented image of good quality



Click here to View figure



Figure 8.Original fingerprint of poor quality image taken from DB2 and Segmented image of poor quality

Figure 8: Original fingerprint of poor quality image taken from DB2 and Segmented image of poor quality



Click here to View figure



Gabor Filter

Gabor filter is used for enhance the segmented fingerprint image for better result. The images are illustrated in figures below:

Figure 9.Segmented fingerprint of good quality image taken from DB1 and Gabor filter image of good quality

Figure 9: Segmented fingerprint of good quality image taken from DB1 and Gabor filter image of good quality



Click here to View figure



Figure 10.Segmented fingerprint of Poor quality image taken from DB1 and Gabor filter image of poor quality

Figure 10: Segmented fingerprint of Poor quality image taken from DB1 and Gabor filter image of poor quality



Click here to View figure

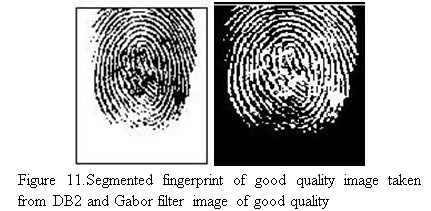

Figure 11.Segmented fingerprint of good quality image taken from DB2 and Gabor filter image of good quality

Figure 11: Segmented fingerprint of good quality image taken from DB2 and Gabor filter image of good quality



Click here to View figure



Figure 12.Segmented fingerprint of poor quality image taken from DB2 and Gabor filter image of poor quality

Figure 12: Segmented fingerprint of poor quality image taken from DB2 and Gabor filter image of poor quality



Click here to View figure



Histogram

Histograms of original image, segmented image and Gabor filter Image of good and poor quality were constructed.It is found that histograms of the Gabor filter images are similar and intensities lie in the range 0-1 as shown below:

Figure 13.Histogram of original image of good quality taken from DB1

Figure 13: Histogram of original image of good quality taken from DB1


Click here to View figure

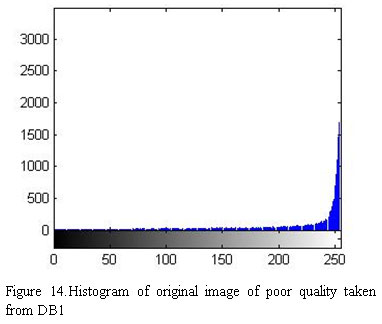

Figure 14.Histogram of original image of poor quality taken from DB1

Figure 14: Histogram of original image of poor quality taken from DB1



Click here to View figure

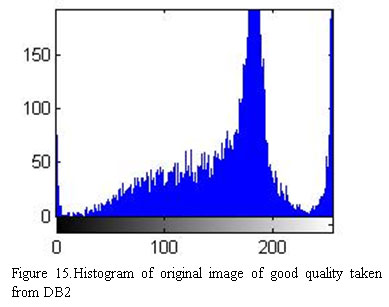

Figure 15.Histogram of original image of good quality taken from DB2

Figure 15: Histogram of original image of good quality taken from DB2



Click here to View figure

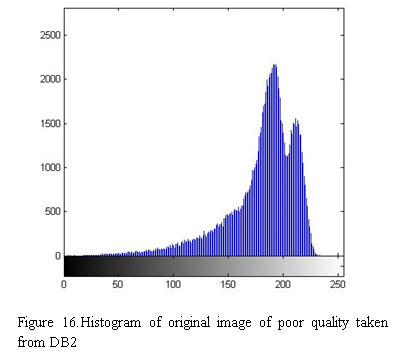

Figure 16.Histogram of original image of poor quality taken from DB2

Figure 16: Histogram of original image of poor quality taken from DB2



Click here to View figure

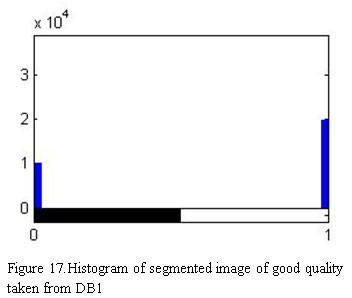

Figure 17.Histogram of segmented image of good quality taken from DB1

Figure 17: Histogram of segmented image of good quality taken from DB1



Click here to View figure



Figure 18.Histogram of segmented image of poor quality taken from DB1

Figure 18: Histogram of segmented image of poor quality taken from DB1



Click here to View figure

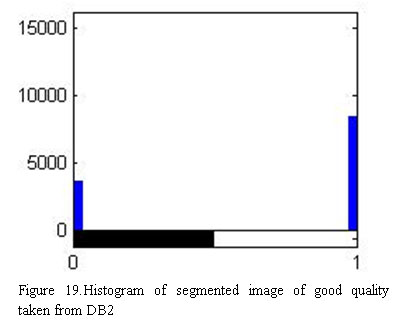

Figure 19.Histogram of segmented image of good quality taken from DB2

Figure 19: Histogram of segmented image of good quality taken from DB2



Click here to View figure

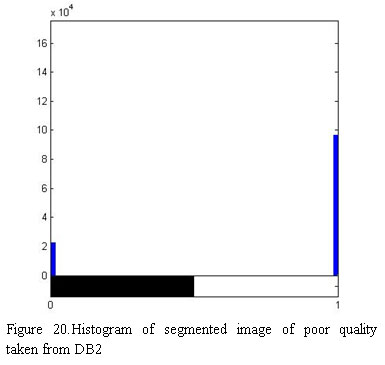

Figure 20.Histogram of segmented image of poor quality taken from DB2

Figure 20: Histogram of segmented image of poor quality taken from DB2



Click here to View figure

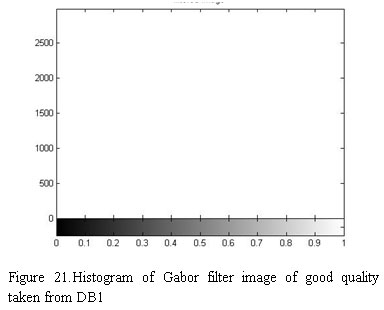

Figure 21: Histogram of Gabor filter image of good quality taken from DB1

Figure 21: Histogram of Gabor filter image of good quality taken from DB1



Click here to View figure

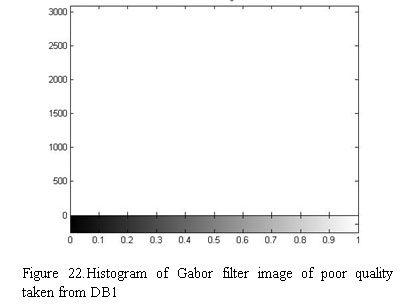

Figure 22.Histogram of Gabor filter image of poor quality taken from DB1

Figure 22: Histogram of Gabor filter image of poor quality taken from DB1



Click here to View figure

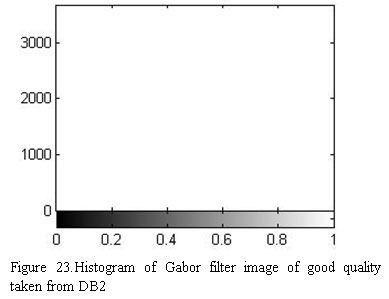

Figure 23.Histogram of Gabor filter image of good quality taken from DB2

Figure 23: Histogram of Gabor filter image of good quality taken from DB2



Click here to View figure



Figure 24.Histogram of Gabor filter image of poor quality taken from DB2

Figure 24: Histogram of Gabor filter image of poor quality taken from DB2



Click here to View figure



Conclusion

In this work, the proposed technique improves sensor interoperability in fingerprint sensors by using a Gabor filter. The Proposed approach is used for enhance the segmented fingerprint image of good quality and poor quality. It improves sensor interoperability in fingerprint sensors. In this paper,a Gabor Filter approach is presented to enhance the segmented images accurately when the image is captured using various sensors. In future, it will applicable on any type of biometric sensor.
